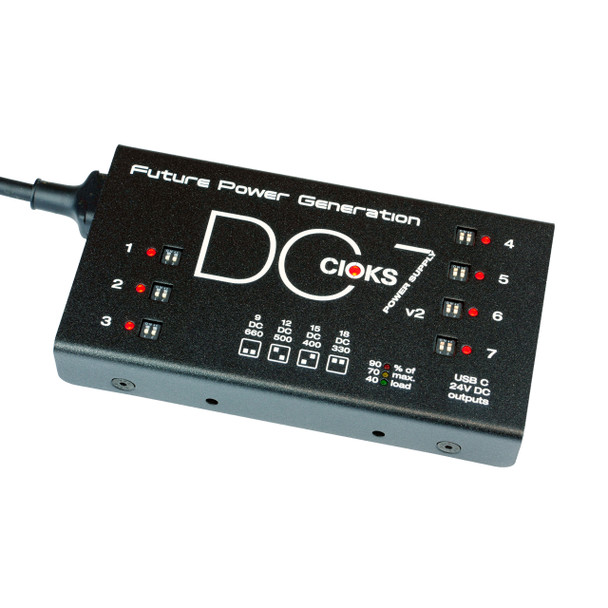

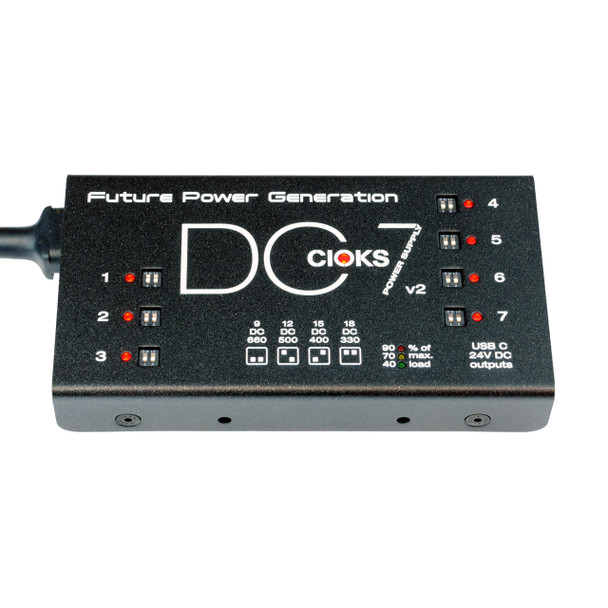

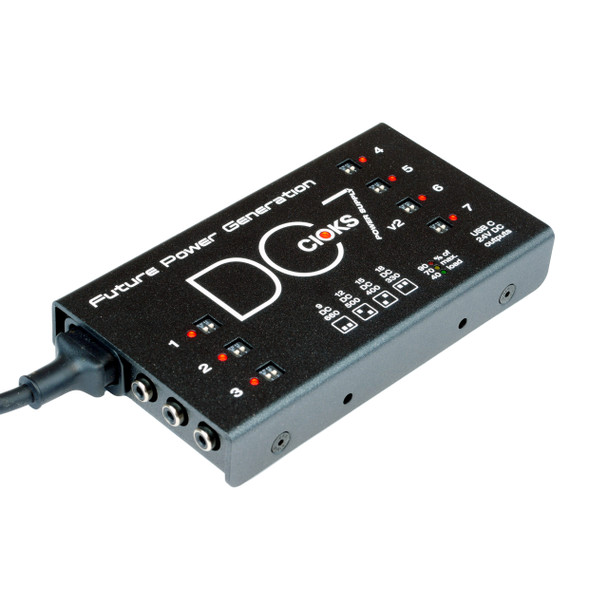

CIOKS DC7 V2 Multi Output Effects Pedal Power Supply

The CIOKS DC7 v2 is the latest evolution of the award-winning, industry-leading power supply for effects pedals. Renowned for its ultra-slim profile and exceptional flexibility, this PSU has been thoughtfully upgraded with a powerful USB-C output delivering up to 15 W, making it perfectly suited for today’s power-hungry pedals and devices. The DC7 v2 is designed to run cooler and more efficiently than its predecessor while providing reliable, clean power to your entire pedalboard setup.

Built to energise multiple modern digital pedals alongside delicate analogue units without introducing noise, the DC7 v2 ensures your tone stays pristine. Expandable with CIOKS 4, CIOKS 8 and Crux power units through its 24 V auxiliary output, it offers unmatched versatility. Paired with CIOKS Flex cables, the DC7 v2 remains the pinnacle of silent, dependable pedalboard power solutions.

Main Features

• Exceptionally slim 1-inch (25.4 mm) profile and lightweight at just 500 g
• Advanced 2-stage switch-mode power supply technology for enhanced efficiency
• Ultra-low noise output via multi-stage filtering for crystal-clear tone
• Seven isolated DC outlets with independently selectable voltages: 9 V, 12 V, 15 V or 18 V
• Each DC outlet delivers up to 660 mA (9 V) of clean power, supporting a wide range of pedals
• High-capacity 5 V USB-C output (3 A/15 W) for charging and powering modern USB-C devices
• 24 V auxiliary outlet (2 A) for expanding power supply capacity using compatible CIOKS units
• Individual LED power limit indicators on every output, plus total load and overload status LEDs
• Supplied with 12 Flex cables for immediate use with a wide variety of pedals
• Universal mains input voltage: 90–265 V AC
• Total rated output power of 48 W to power even the most demanding pedalboards
• Includes mounting hardware compatible with Pedaltrain and Templeaudio boards
• Supports drill-free mounting with CIOKS GRIP accessory
• Designed in Denmark and assembled in Poland
• Backed by an industry-leading 5-year worldwide warranty

Detailed Power Specifications

• DC Outlets 1-7:
  • 9 V DC at 660 mA
  • 12 V DC at 500 mA
  • 15 V DC at 400 mA
  • 18 V DC at 330 mA
• USB-C Output: 5 V at 3 A (15 W max)
• 24 V Aux Output: 2 A

Flex Cable Set Included

• 7 x Standard Flex Type 1 (black, 5.5/2.1 mm centre negative)
• 1 x Standard Flex Type 2 (red, 5.5/2.1 mm centre positive)
• 1 x Standard Flex Type 4 (green, 5.5/2.5 mm centre positive)
• 1 x Standard Flex Type 5 (black, tip positive 3.5 mm jack plug)
• 1 x Split Flex Type 1 (powers two pedals from one outlet)
• 1 x 3-way Daisy Chain Flex Type 1 (powers three pedals from one outlet)
