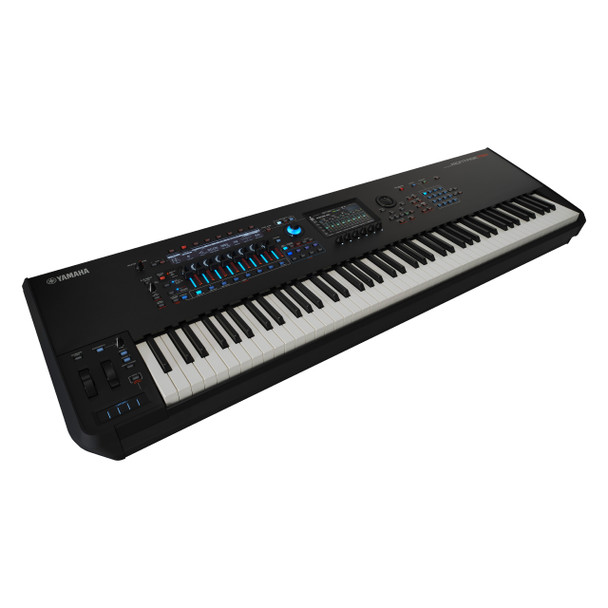

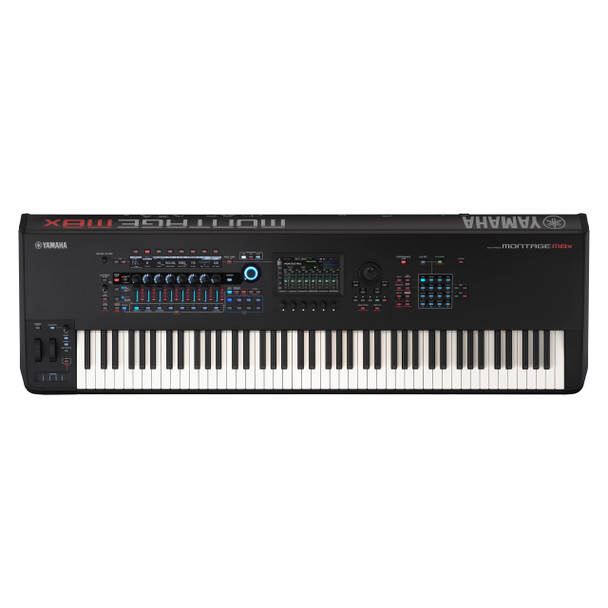

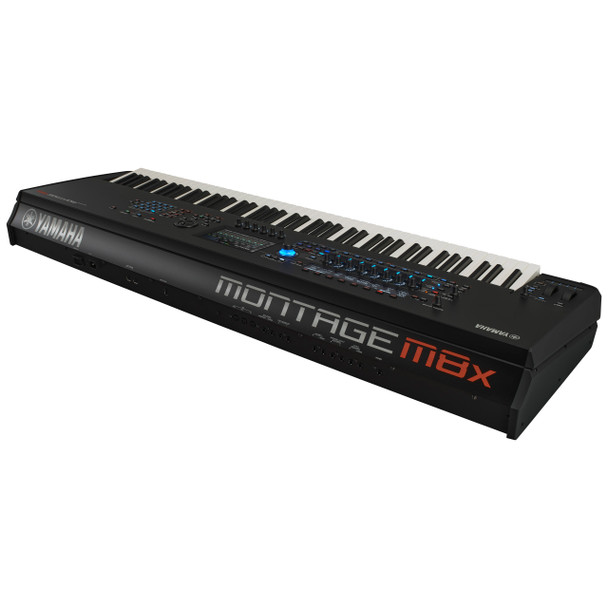

Yamaha Montage M8X 88 Key Synthesizer

This product is sold in the name and on behalf of Yamaha Music Europe and the general terms of Yamaha as well as the Data protection information will be applicable. Information on these can be found at Yamaha General Terms and Yamaha Data Protection Information.

Please note that we are unable to offer 0% interest finance on this product.

The Yamaha MONTAGE M8x is the next generation flagship synthesizer from Yamaha, designed to unite expressive performance with deep sound design and modern production workflows. Built for pianists who demand an 88 key weighted action and synth players who want the nuance of polyphonic aftertouch, MONTAGE M8x introduces a powerful new era of sound, control, and creativity.

At its core are three advanced sound engines. AN X recreates warm, characterful analogue synthesis, FM X delivers cutting edge frequency modulation with clarity and impact, and AWM2 provides ultra realistic sample based recreations of acoustic and electronic instruments. These engines are brought to life by Yamaha’s Motion Control Synthesis Engine, adding a fourth dimension of automated real time movement that makes sounds evolve organically as you play.

With extensive hands on control, a dedicated sub display, and deep computer integration, the MONTAGE M8x seamlessly bridges stage and studio, giving you direct access to sound shaping and effortless integration with modern DAW based workflows.

Key Features

Keyboard and Performance

• 88 key GEX weighted keyboard
• Initial Touch and Polyphonic Aftertouch
• Designed for expressive piano, synth, and hybrid performance

Sound Engines

AWM2
- Two banks of 128 voice polyphony
- Up to 128 elements per part
- 10 GB preset waveform memory
- 3.7 GB flash memory for user waveforms

FM X
- 128 voice polyphony
- 8 operators
- 88 algorithms for advanced FM synthesis

AN X
- 16 voice polyphony
- 3 oscillators plus noise generator
- Authentic analogue style sound design

Performances and Live Sets

• 3,369 preset performances
• 128 preset live sets
• 2,048 user live sets
• Motion Sequencer for real time parameter control
• 16 part multitimbrality plus audio input parts

Filters and Effects

• 18 filter types
• Integrated effects processing
• Reverb with 12 types
• Variation with 88 types
• Insertion A with 88 types
• Insertion B with 89 types
• Master effects with 26 types
• Five band master EQ
• Two part EQs

Sequencing and Arpeggiation

• 16 track sequencer
• 128 patterns
• 128 songs
• Arpeggiator for up to eight parts simultaneously
• 10,922 preset arpeggios including 3,500 rhythm patterns
• 256 user arpeggios

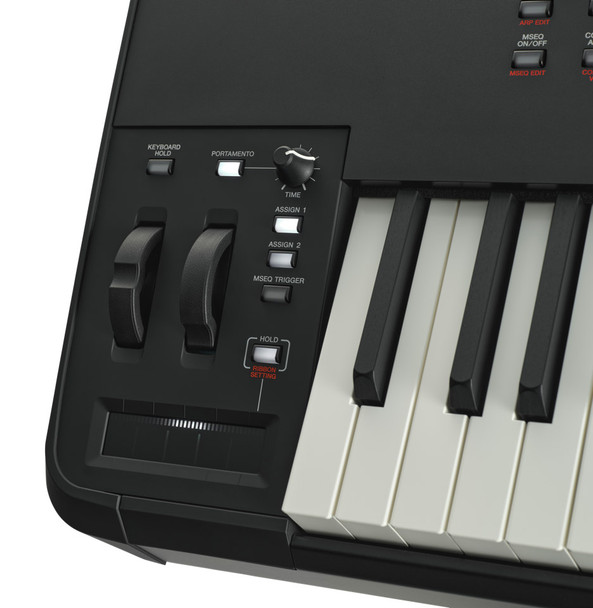

Controllers

• Pitch bend and modulation wheel
• Ribbon controller
• 8 control sliders
• 8 assignable knobs
• Super Knob
• 2 assignable switches
• Portamento switch and time control
• 6 display knobs

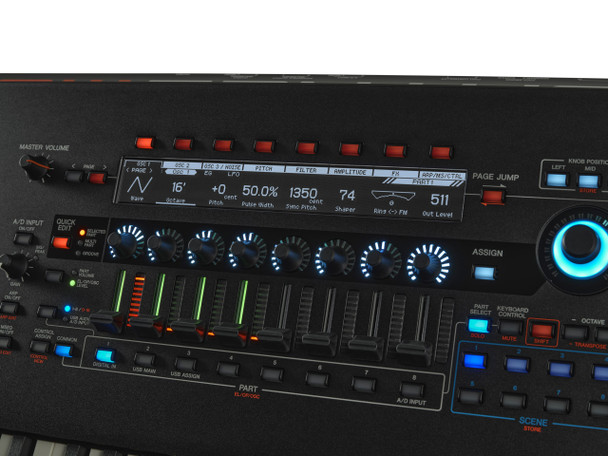

Displays

• 7 inch TFT colour wide VGA LCD touchscreen
• Secondary LCD sub display

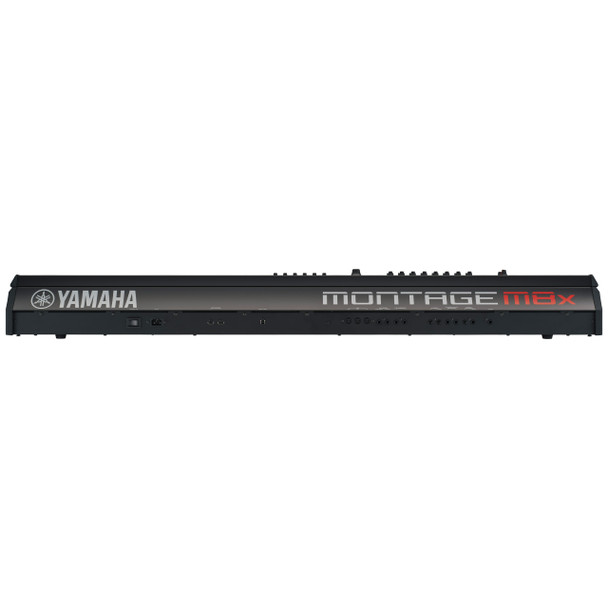

Connectivity

• Main outputs L mono and R
• Assignable outputs L and R
• A D inputs L mono and R
• Headphone output
• MIDI in out and thru
• Two foot controller inputs
• Sustain and assignable foot switch inputs
• Two USB to device ports
• USB to host
  • 6 channels Input, 32 channels Output at 44.1 kHz
  • 6 channels Input, 8 channels Output at 192 kHz

Dimensions and Weight

• Width 1,446 mm
• Depth 460 mm
• Height 170 mm
• Weight 28.1 kg

Included Accessories

• Owner’s manual
• AC power cord
• Cubase AI download

Performance and Workflow

The MONTAGE M8x is designed to remove barriers between inspiration and execution. Motion Control allows complex sound movement with a single gesture, while deep DAW connectivity enables multichannel audio and MIDI over USB for streamlined recording and production. From evolving textures and cinematic soundscapes to authentic acoustic instruments and powerful synth leads, the MONTAGE M8x delivers precision and inspiration in equal measure.
