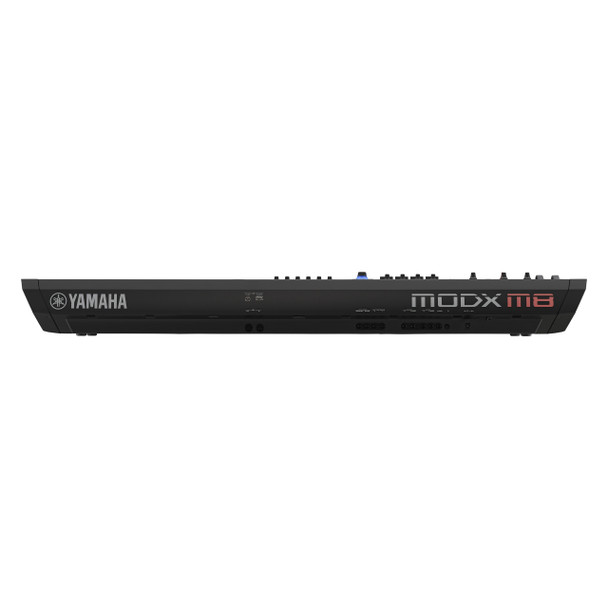

Yamaha MODX M8 Music Synthesizer, 88 Keys

The Yamaha MODX M8 is the flagship model of the next-generation MODX M series, redefining expressive performance and sound creation. Designed for synthesists, keyboardists, and pianists, it combines deep synthesis power with intuitive control and seamless computer integration, making it the ultimate creative tool for both stage and studio.

With its 88-key GHS keyboard offering authentic piano feel, the MODX M8 inspires musical expression across genres — from cinematic textures to dynamic electronic soundscapes.

Main Features

• 88-key GHS keyboard with Initial Touch
• Three tone engines – AN-X (analogue modelling), FM-X (FM synthesis), AWM2 (sample-based synthesis)
• Motion Control Synthesis Engine for dynamic, real-time modulation
• 3,427 preset performances, 256 preset live sets, and 2,048 user live sets
• 16-part multitimbrality plus audio input parts (A/D In, USB)
• 18 filter types and extensive integrated effects
• 7” TFT colour wide VGA touchscreen for intuitive navigation
• 5-band master EQ plus individual part EQs
• USB audio/MIDI interface – 4 channels in, 10 channels out at 44.1 kHz
• Lightweight and portable design – only 13.6 kg

Next-Generation Sound Design

At the core of the MODX M8 are three powerful tone engines, each offering a unique approach to sound creation:

• AN-X Engine – Recreates the rich, warm sound of vintage analogue synthesisers with incredible authenticity.
• FM-X Engine – Produces complex, dynamic tones and cutting-edge frequency modulation textures.
• AWM2 Engine – Delivers ultra-realistic, sample-based replications of acoustic instruments with stunning depth and clarity.

Together, these engines are unified by Yamaha’s Motion Control Synthesis Engine, providing a fourth dimension of creative expression through real-time, automated control of sound parameters. This allows for evolving soundscapes and live performances full of movement and life.

Seamless Studio and Stage Integration

The MODX M8 bridges performance and production with USB audio and MIDI connectivity for effortless integration into your setup. With the Expanded Softsynth Plugin (E.S.P.), the full tone generation of the MODX M is available virtually within your DAW, allowing seamless transition between hardware and software workflows.

A wide array of physical controls — including sliders, knobs, switches, and Yamaha’s signature Super Knob — puts expressive power directly at your fingertips, enabling total control over every sonic detail.

Technical Specifications

Tone Generators
- AWM2: 128 voices of polyphony, 10.7 GB preset waveforms (16-bit linear), 1.9 GB flash memory for user waveforms
- FM-X: 128 voices of polyphony, 8 operators, 88 algorithms
- AN-X: 12 voices of polyphony, 3 oscillators, 1 noise generator

Sequencer
- 16 tracks, 128 patterns, 128 songs

Arpeggiator
- 10,922 preset arpeggios
- 256 user arpeggios
- Up to 8 parts playable simultaneously

Controllers
- Pitch Bend and Modulation Wheel
- 8 control sliders with LED bars
- 4 assignable knobs plus Super Knob
- 2 assignable switches
- 8 scene switches
- Portamento switch and Portamento Time knob
- 6 display knobs

Display
- 7” TFT Colour Wide VGA LCD Touch Screen

Connections
- Outputs: L/MONO, R (6.3 mm TRS)
- Inputs: A/D Input L/MONO, R (6.3 mm TRS)
- Headphones: Stereo (6.3 mm)
- MIDI: In/Out
- Foot Controllers: 1 / 2
- Foot Switches: Sustain / Assignable
- USB: To Device / To Host

Audio Interface
- 4-channel input, 10-channel output at 44.1 kHz

Dimensions (W × D × H): 1,310 × 391 × 152 mm
Weight: 13.6 kg

Included Accessories: Quick Guide, AC Power Adaptor, Cubase AI Download, ESP Download Code
Optional Accessories: Foot Switches and Controllers (FC3A, FC4A, FC5, FC7), Soft Bag (SC MODX M8)

Designed for Expression and Performance

From intricate sound design to expressive live playing, the Yamaha MODX M8 offers the ultimate synthesis experience. Its blend of cutting-edge technology, authentic keyboard feel, and seamless software integration makes it a perfect choice for professionals and serious players alike.
