Description
Condition: Very good. The power unit has a scratch on the top but is otherwise OK. New IEC mains lead included. All other cables and original box included. No manual.

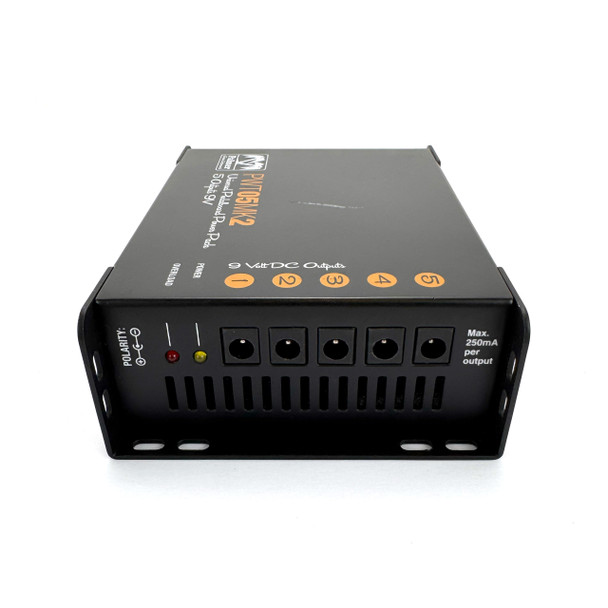

The Palmer PWT 05 MK2 Universal Power Supply provides clean, stable DC power for a wide range of pedalboard setups. Designed with professional musicians in mind, it ensures noise-free performance and protects your pedals from ground loop hum.
With five centre-negative barrel-style outputs delivering 250 mA each, the PWT 05 MK2 suits almost any pedalboard size. Each output is fully isolated to eliminate interference, offering quiet operation for your entire setup.
This compact and rugged power supply includes two connection cables in lengths of 25 cm and 50 cm, plus two Y-cables. Use the black connector Y-cable to combine two 9 V outputs for 500 mA current. The white connector Y-cable doubles voltage to 18 V by linking two 9 V outputs. For pedals that draw less than 250 mA combined, the 1-into-5 daisy chain lets you power five pedals from a single output.
An IEC mains inlet and voltage selector enable worldwide compatibility, while overload protection safeguards your gear. The sturdy enclosure offers easy mounting and excellent cable management.
Main Features
- Five centre-negative 9 V DC outputs, each delivering stable 250 mA current
- Isolated outputs to prevent ground loop noise and hum
- Overload protection for safe, reliable operation
- Includes 25 cm and 50 cm power cables, plus two Y-cables for voltage and current flexibility
- Daisy chain cable for powering multiple pedals from one output (max 250 mA total)
- IEC mains input and voltage selector for worldwide use
- Durable, compact enclosure with mounting options and cable relief
Specifications
- Type: Multiple power supply for pedals
- Mains connector: IEC socket
- Input voltage: 230 V
- Number of outputs: 5
- Output connector size: 2.1 x 5.5 mm barrel
- Output voltage: 9 V (centre negative)
- Max output current per channel: 250 mA
- Isolated outputs: Yes
- Cable lengths: 25 cm, 50 cm
- Indicators: Power and overload
- Controls: Voltage selector switch, mains on/off switch
- Dimensions: 105 mm (W) x 140 mm (D) x 45 mm (H)
- Weight: 1.5 kg
Frequently Asked Questions
➤ Can I use the Palmer PWT 05 MK2 to power pedalboards of any size?
Yes, with five isolated outputs each supplying 250 mA, it comfortably powers pedalboards of various sizes and configurations.
➤ How does the PWT 05 MK2 prevent noisy hum in my pedals?
Each output is fully isolated to eliminate ground loops, reducing unwanted hum and noise in your signal chain.
➤ What are the advantages of the included Y-cables?
The black Y-cable combines two 9 V outputs to increase current capacity up to 500 mA. The white Y-cable doubles voltage to 18 V, providing flexibility for pedals with different power requirements.
➤ Can I power multiple pedals from a single output?
Yes, using the included 1-into-5 daisy chain cable, you can power up to five pedals from one output, as long as their total current draw does not exceed 250 mA.
➤ Is the power supply compatible with international voltages?
Yes, the Palmer PWT 05 MK2 comes with a voltage selector and an IEC mains inlet, making it suitable for worldwide use.
Delivery
This product is in stock and ready to ship
This item is normally sent to Mainland UK addresses by DPD who generally provide a one-hour window of delivery on the morning of delivery by email or text message.
Mainland UK: from £4.99 within mainland UK ( Orders over £199 are delivered FREE )
UK Non-Mainland: from £12.99
We regret that we do not ship this item outside the UK
Warranty Information
Standard warranty against manufacturer defects apply. Extended warranty is not available on this item.
