Description
The Q Series brings decades of British design and engineering to your audio productions. The series consists of 4 analogue mixing consoles which cover and array of live sound.
**Q Series Main Features**
- High-Quality DSP Effects
- Stereo RCA In/Out
- Stereo Monitor Out
- Stereo Balanced XLR Main Out
- USB Audio I/O
- Comprehensive Monitoring
- Global Phantom Power
- Solid Construction
- Universal ~ 100-240V world-wide operation
2in/2out USB expands the functionality of all Q Series mixers even further making these mixers a great tool for music production and recording live performances or podcasts.
The Q Series' comprehensive channel strip allows you to take complete control over the tonla shape, dynamics, and depth of your mixes with low-noise mic-preamps, 3-band EQ, single-knob compression, and high-quality DSP effects.

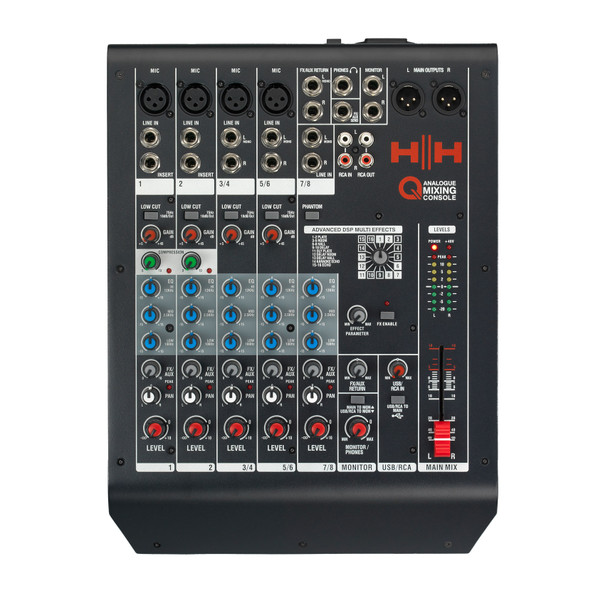

The next step up in the Q series is the Q8FX. A similarly compact design to the Q6FX but with an expanded feature set.
**Main Features**
- 8 Channels
- 4 Mic Inputs
- 2 Compressors
- 3 Stereo Inputs
- 3 Band EQ on all Channels
- High-Quality DSP Effects
- 1 Aux with Stereo Return
- Pan on each Channel
- USB In/Out
The Q8FX features 8 channels (4 microphone inputs, 3 stereo line inputs), 5 banks of 3-band EQ, high-quality DSP effects with parameter control, and 2in/2out USB functionality.
The first 2 channels on the Q8FX also include a mono insert option as well as an east-to-use single-knob compressor. This gives you control of the dynamic range of your input sources and helps dynamically varying vocals and instruments sit right in your mix. Additional features include a 75Hz 18dB/Oct low cut on channels 1-6 plus an analogue record-out option via RCA.
**Specifications**
- Channels: 8
- Mono Inputs (Mic): 4
- Mono Inputs (Line): 2
- Stereo Inputs (Line): 3
- Insert Lines: 2
- Channel EQ: 3 Band
- Compressors: CH1-2 with indicator
- Phantom Power: Global Switch (+48V)
- Main Outs: Stereo balanced XLR sockets
- Phones: Yes (1/4" 6.3mm TRS)
- Aux: 1
- FX: 16 Program DSP with Parameter Adjustment
- USB: 2in, 2out
- Master Faders: 60mm Master
- Meters: 8 Point LED
- Frequency Response (Main output): 20-20kHz (+-0.3 dBu)
- THD%: < 0.001% @ 1kHz
- Residual Output Noise: <15uV
- SNR: >110dB
- Channel Crosstalk: > -90dB
- EQ: Treble: 12kHz, +/-15dB, Mid: 2.5kHz, +/-15dB, Bass: 100Hz, +/-15dB
- Input & Output Levels: Mic: +13dBu, Line:+27dBu max, Stereo: >+27dBu, Main Output: +21dBu max, Phones (@ 150ohms): 300mW
- Input & Output Impedances: Mic: 1.2kΩ, Line Input: 10kΩ, Stereo Input: 21.5kΩ, Outputs: 150Ω (balanced), 75Ω (unbalanced)
- USB Audio: Inputs/Outputs: 2-in, 2-out, 16-bit, 24-bit, Sampling rate: 48kHz (Type B Connector)
- AC Power: Universal 100-240V ~ 50/60Hz (IEC C14 Socket, AC Cord included)
- Power Consumption: 20W
- Product Dimensions (HWD): 96 x 261.5 x 351mm / 3.8" x 10.3" x 13.8"
- Product Weight: 3.3kg / 7.3lbs
