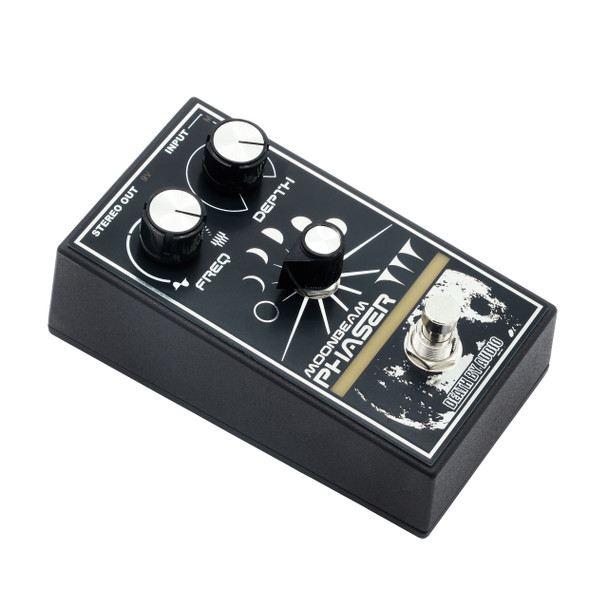

Death By Audio Moonbeam Phaser Stereo Multi Stage Phaser Effects Pedal

The Death By Audio Moonbeam Phaser is a mesmerising stereo phaser pedal that pushes classic modulation into bold, experimental territory. Featuring selectable one to six stage phase shifting, the Moonbeam allows you to completely reshape your sound, from familiar swirling motion to deep, gooey bends, resonant tremolo effects, and otherworldly textures that defy expectation.

Main Features

• Analogue stereo six stage phaser pedal
• Dual analogue phaser engines for immersive stereo modulation
• Suitable for mono or stereo signal chains via onboard input configuration switch
• Compatible with TS to TS, TRS, and TS to TRS connections
• Phase Selector control with six distinct phaser voices indicated by LED colour
• Red mode with sweeping high pass filter and tremolo style movement
• Yellow mode with sweeping notch filter and resonant peaks
• Green mode blending phaser and harmonic tremolo characteristics
• Cyan mode delivering the classic phaser sound
• Blue mode with enhanced resonance and treble focus
• Purple mode with full, bass rich, chewy phasing
• Extremely wide frequency range from 0.006 Hz to 140 Hz
• Ultra slow phasing with sweeps lasting over two minutes
• Controls for Frequency and Depth

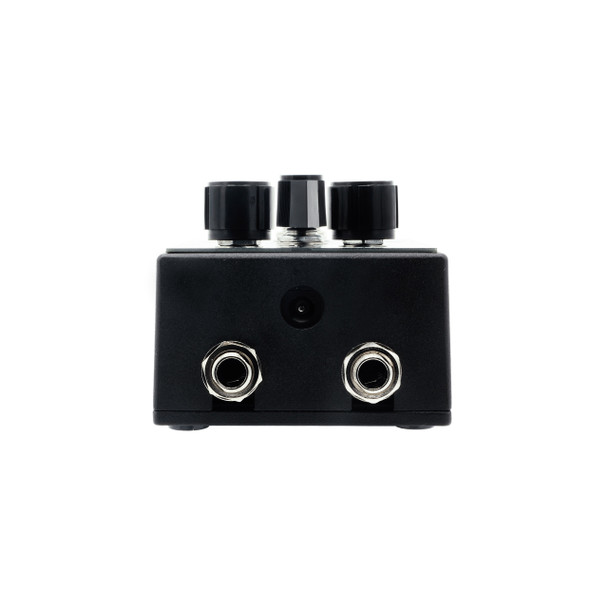

• Top mounted input and output jacks
• Compact Destroyer Series enclosure
• Hand made in New York, USA

At the heart of the Moonbeam are two fully analogue six stage phaser engines, delivering true stereo modulation with immense depth and movement. Each phase stage can be accessed individually, revealing its own unique character, while the colour changing LED display visually mirrors the modulation in real time. This makes the Moonbeam as inspiring to watch as it is to hear.

The Frequency control is pushed far beyond conventional phaser limits, offering an enormous sweep range from ultra slow modulation lasting over two minutes to fast, aggressive frequency shifts that verge on ring modulation. Combined with the Depth control, this opens up an expansive tonal palette ranging from subtle rotary style shimmer to thick, resonant phasing that feels alive and constantly evolving.

A dedicated Phase Selector lets you choose between six distinct phaser voices, each offering a different filter response and tonal focus. Whether you want classic vintage swirl, harmonic tremolo style movement, or dense, chewy modulation with enhanced low end, the Moonbeam delivers a huge range of expressive sounds. With stereo operation at the tap of a footswitch, it transforms guitars, basses, synthesisers, and more into wide, immersive soundscapes.

Part of the Destroyer Series, the Moonbeam Phaser features a compact, stage friendly enclosure, glowing vintage style LED display, and minimal control layout that hides immense sonic power beneath the surface. Hand made in New York, it is a bold modulation tool for players who want their effects to be as adventurous as their music.

Specifications

• Effect type: Analogue stereo phaser
• Phaser stages: Selectable from one to six
• Frequency range: 0.006 Hz to 140 Hz
• Controls: Frequency, Depth, Phase Selector
• Inputs and outputs: Top mounted, TS and TRS compatible
• Power supply: 9 V DC centre negative
• Current draw: Approximately 72 mA
• Power supply not included
