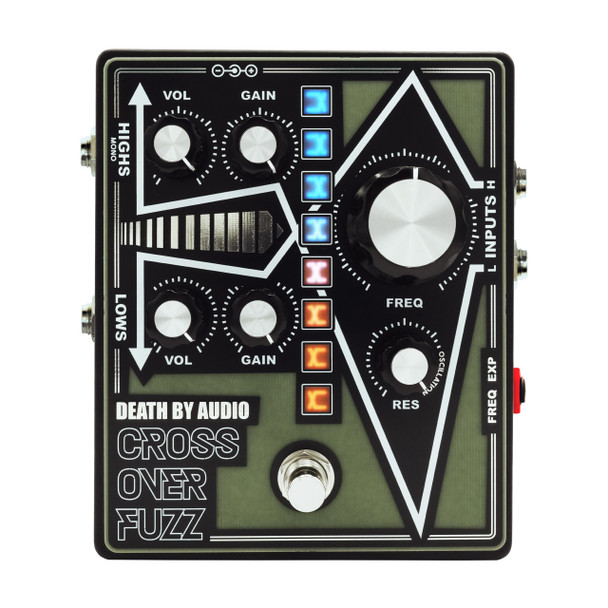

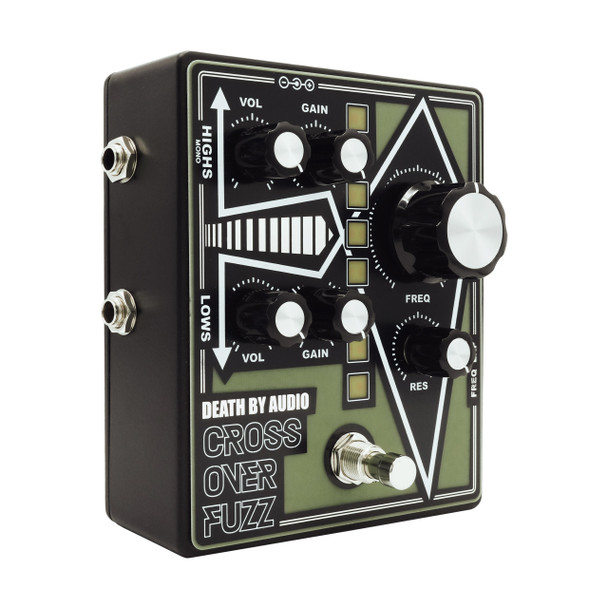

Death By Audio Crossover Fuzz Dual Band Fuzz and Filter Pedal

The Death By Audio Crossover Fuzz is a savage, dual band fuzz pedal designed to tear your signal apart and rebuild it into something bold, chaotic, and completely original. Using an aggressive crossover circuit, it splits your sound into high and low frequencies and subjects each band to Death By Audio’s unmistakable fuzz, delivering massive tonal destruction with precise control.

Main Features

• Dual band crossover fuzz pedal
• Splits signal into high and low frequencies with independent control
• Dedicated controls for Frequency, Resonance, Gain, and Volume
• Dual inputs and outputs for advanced routing and stereo configurations
• Expression pedal or 0 to 5 V CV control for filter frequency automation
• Ideal for stereo sweeps, panning effects, and animated filtering
• Real time LED display shows crossover position
• Internal LED colour switch with two visual modes
• Sky Light mode with yellow low pass and cyan high pass LEDs
• Cyber Light mode with red low pass and blue high pass LEDs
• Top mounted input and output jacks
• Hand made in New York, USA

Unlike traditional fuzz pedals, the Crossover Fuzz gives you independent command over both halves of your signal. This allows you to sculpt tight, focused low end while unleashing snarling, unstable fuzz on the highs, or push both bands into oscillating madness. The result is a fuzz sound that can cut cleanly through a mix or overwhelm it with controlled chaos.

The Frequency control sweeps two analogue resonant filters simultaneously, making it easy to carve out space on stage or dial in extreme, animated textures. Crank the resonance for screaming filter sweeps and oscillation, or fine tune each band’s gain and volume to create your own custom EQ curve with brutal attitude.

With separate high and low inputs and outputs, the Crossover Fuzz opens up creative routing options rarely seen in a fuzz pedal. Split your signal across multiple amps, isolate frequency bands for external effects, or use the pedal as a dynamic stereo panner that throws frequencies across the soundstage. Expression pedal and CV control allow automated filter sweeps, panning effects, and evolving textures, all visualised by the reactive LED display.

Hand made in New York and built for fearless experimentation, the Death By Audio Crossover Fuzz is a powerful creative tool for guitarists, bassists, synth players, and sound designers who want to push fuzz far beyond conventional limits.

Specifications

• Effect type: Dual band crossover fuzz
• Controls: Frequency, Resonance, Gain, Volume
• Inputs and outputs: High and low band, top mounted
• External control: Expression pedal or 0 to 5 V CV
• LED modes: Sky Light and Cyber Light
• Power supply: 9 V DC centre negative
• Current draw: Approximately 120 mA
• Power supply not included
