Description
The M5 Wireless Microphone System delivers exceptional wireless performance for stage shows, hosting events, teaching, livestreaming and portable public address needs. Engineered for flexibility and ease of use, it features seven selectable channels, including an auto-sync mode and six fixed-frequency options, supporting both single and multi-system setups.

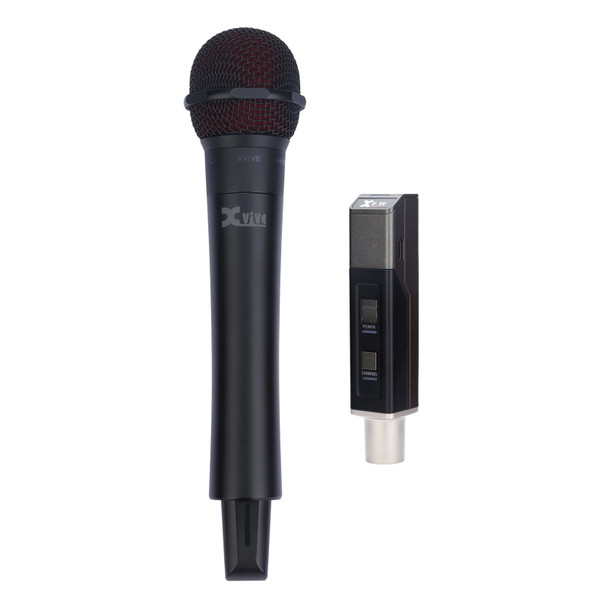

Experience crystal-clear audio transmission on the 5.8 GHz band with high-fidelity 24-bit/48 kHz digital sound and ultra-low latency under 5 milliseconds. The dynamic handheld microphone/transmitter is compatible with a wide range of professional mic capsules from leading brands, allowing you to customise your sound.
Main Features
- Stable wireless operation on worldwide 5.8 GHz ISM band
- Seven switchable channels: Auto Mode plus six fixed-frequency channels (1 to 6) for interference-free use
- Supports multiple receivers for one transmitter using fixed-frequency channels
- Allows up to six systems simultaneously in one location on fixed channels or up to five systems in Auto Mode
- Compatible with capsules from Shure®, Electro-Voice®, Heil Sound®, Telefunken®, Lectrosonics®, Lewitt®, Austrian Audio®, and sE Electronics®

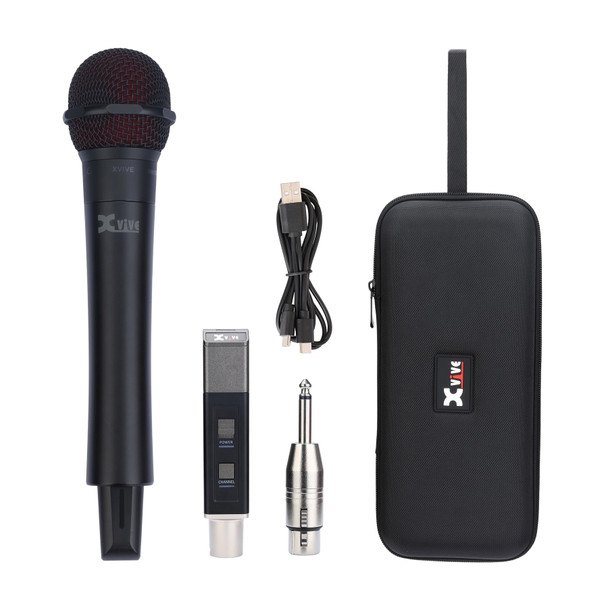

- Includes both female XLR output and an XLR to 1/4” adapter for versatile connection options
- 12 hours battery life (transmitter), 10 hours (receiver) with fast USB charging
Specifications
- Wireless Frequency: 5.8 GHz ISM worldwide open band
- Audio Quality: 24-bit / 48 kHz
- Channels: 7 (Auto Mode + 6 fixed-frequency)
- Frequency Response: 20 Hz – 20 kHz
- Dynamic Range: 110 dB
- Latency: <5 ms
- Operating Range: Up to 30.5 m / 100 ft (line-of-sight)
- Battery: Onboard lithium-ion, USB rechargeable
- Battery Life: 12 hours (transmitter), 10 hours (receiver)
- Charging Time: 4.5 hours (transmitter), 3.5 hours (receiver)
Channel and System Arrangement
The M5 system connects in Auto Mode by default, scanning locally to select the clearest channel. For more complex setups, select one of six fixed frequencies (Channels 1–6) manually by matching transmitter and receiver settings. Use fixed frequencies to pair one transmitter with multiple receivers or operate up to six M5 systems simultaneously in the same space without interference.
Versatile Capsule Compatibility
Swap the mic head easily for customised sound using professional capsules from well-known brands including:
- Shure® (Beta58A, SM58, KSM9 and more)
- Electro-Voice® (RE420, RC2 series)
- Heil Sound® (RC22, RC35)
- Telefunken® (M80WH, M81WH)
- Lectrosonics® (HHC, HHVMC)
- Lewitt® (W9)
- Austrian Audio® (OD505 WL1, OC707 WL1)
- sE Electronics® (V7 MC series)
Multiple Receiver Setup
Send your microphone signal to several receivers simultaneously on a fixed channel by setting transmitter and all receivers to the same frequency. Auto Mode does not support multiple receivers for a single transmitter.
Connectivity Options
The receiver connects directly to any mixer or interface with a female XLR mic input. The included XLR to 1/4” adapter allows connection to 1/4” inputs on amplifiers and powered speakers, ensuring compatibility with diverse audio equipment.
Frequently Asked Questions
➤ How many M5 systems can I operate in the same area without interference?
You can use up to six M5 systems simultaneously in one location using fixed-frequency channels (1 to 6). Alternatively, you can operate up to five systems in Auto Mode (Channel 0), each paired one-to-one.
➤ Can I connect one microphone to multiple receivers?
Yes, by setting the transmitter and all receivers to the same fixed-frequency channel (1 to 6), one microphone can send a signal to multiple receivers. This is not possible in Auto Mode.
➤ What microphone capsules are compatible with the M5 transmitter?
The M5 transmitter supports microphone heads from several brands including Shure®, Electro-Voice®, Heil Sound®, Telefunken®, Lectrosonics®, Lewitt®, Austrian Audio®, and sE Electronics®.
➤ What is the operating range of the M5 system?
The M5 wireless system works reliably up to 30.5 metres (100 feet) line-of-sight, making it suitable for most stage and event environments.
➤ How long does the battery last and how do I charge it?
The transmitter battery lasts up to 12 hours and the receiver battery up to 10 hours. Both are USB rechargeable, with a charging time of approximately 4.5 hours for the transmitter and 3.5 hours for the receiver.
The M5 Wireless Microphone System combines professional quality, ease of use, and versatile connectivity for reliable audio in any live or recorded setting. Enhance your sound with unparalleled freedom and flexibility.
