Description

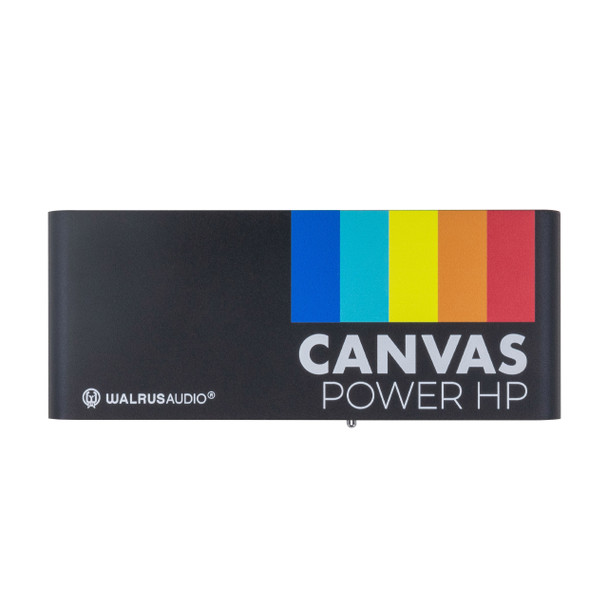

Experience clean, reliable power designed for modern multi-effect units, modelers, and high-powered pedals with the Walrus Audio Canvas Power HP. Engineered for simplicity and modularity, this advanced power supply effortlessly supports hybrid setups featuring pedals alongside powerful modelers such as the Quad Cortex and HX Series.
Built with state-of-the-art switch mode power technology, each output is fully isolated and delivers highly efficient, low-noise power. The Power HP ensures your rig runs smoothly without hum or interference, perfect for professional musicians and serious hobbyists alike.
Main Features

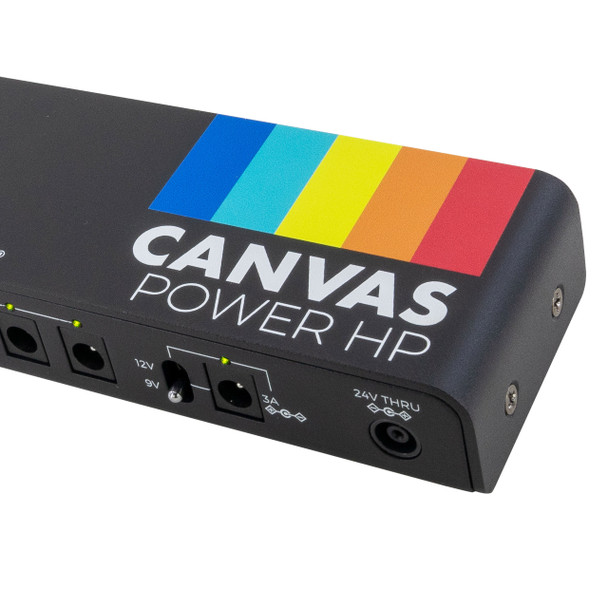

- One powerful output delivering up to 3A (3000mA) at selectable 9V or 12V for demanding pedals or modelers
- Three additional isolated 9V outputs providing up to 500mA each for your standard pedals
- Super slim 1.2-inch profile fits effortlessly under most pedalboards
- Modular design allows linking with other Canvas Power units via a 24V power link to expand your power setup without clutter
- Onboard LED meter displays remaining power capacity, with individual LEDs for each output’s activity
- Includes a comprehensive set of cables (2.1mm and 2.5mm with standard and reverse polarity) for maximum compatibility

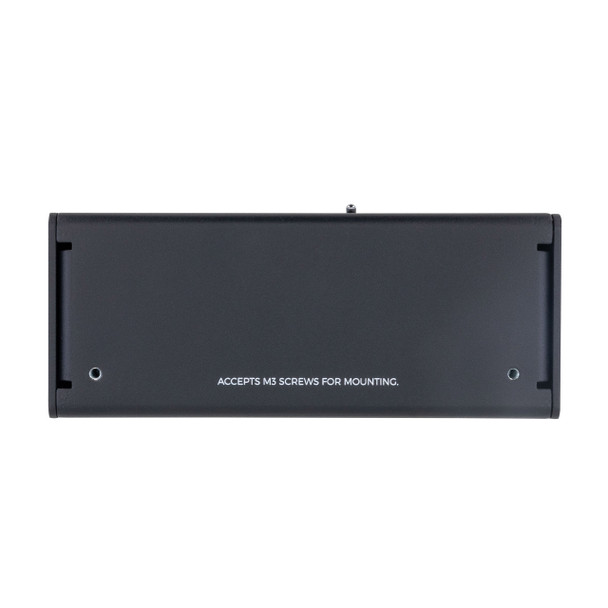

- Universal mounting brackets and M3 hex key supplied for secure and easy installation
Specifications
- Dimensions: 133mm x 54mm x 25.5mm (5.23" x 2.12" x 1")
- Weight: 186g (0.41lbs)
- Outputs:
• 1 x 3A isolated output, selectable 9V or 12V DC
• 3 x 500mA isolated 9V DC outputs - Power brick (powered version): 48W, 24V DC 2A with country-specific IEC cable
- Included cables:
• 3 x 18” straight to right angle DC cables
• 1 x 2.1mm standard polarity DC cable (yellow)
• 1 x 2.1mm reverse polarity DC cable (white)
• 1 x 2.5mm reverse polarity DC cable (red)
• 1 x 2.5mm standard polarity DC cable (blue)
Frequently Asked Questions
➤ Is the Canvas Power HP compatible with the Quad Cortex?
Yes, the Canvas Power HP delivers a powerful 3A isolated output ideal for high-current devices like the Quad Cortex, as well as providing additional 9V outputs for your pedals.
➤ Can I link multiple Canvas Power units together?
Yes, the Power HP supports linking via a 24V power link connection, allowing you to expand your power setup seamlessly without the need for additional wall plugs.
➤ Are the power outputs isolated?
Each output is individually isolated using advanced switch mode technology, ensuring ultra-low noise and preventing ground loop issues across your rig.
➤ What kinds of cables come with the supply?
The Power HP includes an assortment of 2.1mm and 2.5mm DC cables in both standard and reverse polarity configurations plus three 18” straight to right angle cables to ensure compatibility with a wide range of pedals and devices.
➤ How does the LED power meter help?
The onboard LED perfectly shows remaining power capacity while individual LEDs confirm when each output is active, giving you visual assurance that your pedals are powered reliably.
Delivery
This product is on order with our suppliers
This item is normally sent to Mainland UK addresses by DPD who generally provide a one-hour window of delivery on the morning of delivery by email or text message.
Mainland UK: FREE delivery within mainland UK
UK Non-Mainland: from £12.99
We regret that we do not ship this item outside the UK
Warranty Information
Standard warranty against manufacturer defects apply. Extended warranty is not available on this item.
