Description

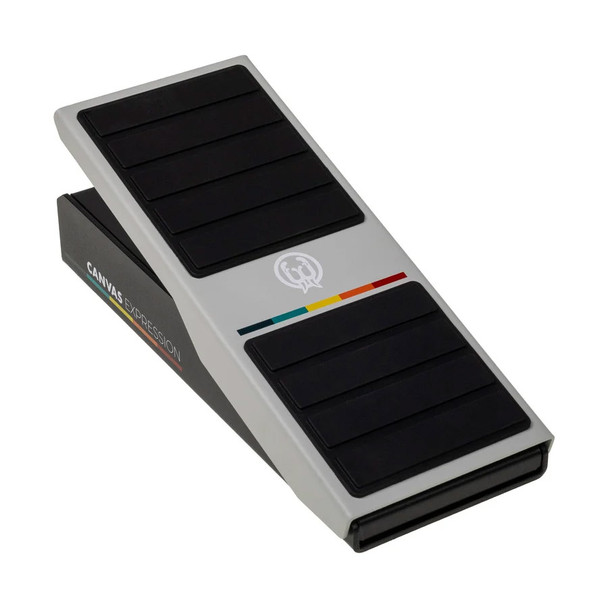

Experience unmatched versatility with the Canvas Expression pedal. Unlike a traditional single-purpose expression pedal, this innovative controller offers two independently configurable outputs. Each output can act as an expression pedal, a programmable switch, or a control voltage (CV) source, giving you comprehensive control over pedals, amps, synthesizers, modular gear, and software—all from one sleek device.
Designed for musicians and producers who demand dynamic, real-time parameter control, Canvas Expression adapts to any setup. Whether you’re adjusting delay repeats, switching presets mid-performance, shaping modular synth sounds, or automating plugins in your DAW, this pedal is your command centre.
Main Features
Dual Independent Outputs
Each output jack (A and B) operates independently and can be set as:- Expression output
- Programmable switch output (momentary or latching)
- Control voltage output with selectable voltage ranges (0–5V or 0–3.3V)
Universal Expression Compatibility
Supports multiple wiring standards including TRS, RTS, and TS resistance mode, with automatic wiring detection for effortless setup.Customisable Control
Adjustable tapers, forward/reverse sweep direction, switching thresholds and output behaviours give you precise response tailored to your preferences.Advanced MIDI Control
Seamlessly control hardware and software with up to 16 assignable MIDI messages via USB-C and ⅛” TRS MIDI output. Supported MIDI messages include Control Change (CC) and Program Change (PC) with 14-bit high-resolution USB MIDI.Built-in Web Editor
Easily configure MIDI assignments, switch behaviours, resistance values and global settings through a streamlined web interface at canvasexp.walrusaudio.io.Adjustable Treadle Tension
Personalise your playing feel by dragging the tension adjustment for either a light or firm pedal sweep.Durable Construction
Featuring a stringless, pot-free, gear-free design, the pedal delivers smooth operation that won’t wear out or scratch, backed by a Limited Lifetime Warranty.
Specifications
- Outputs: 2 independent expression/switch/CV outputs
- CV voltage ranges: 0–5V or 0–3.3V selectable
- MIDI Support: Up to 16 assignable messages, CC, PC, 14-bit USB MIDI

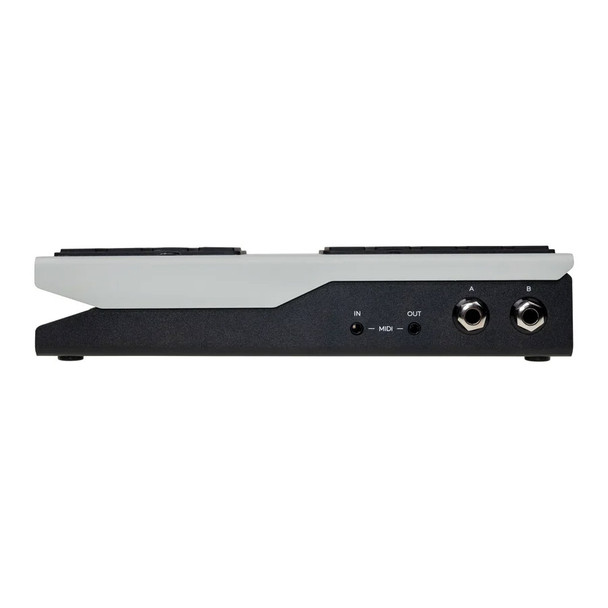

- Connection: USB-C for USB MIDI, ⅛” TRS MIDI out
- Compatibility: TRS, RTS, TS expression wiring with auto-detection
- Input Power: USB powered
- Dimensions: Compact design for pedalboards and desktop use
- Warranty: Limited Lifetime Warranty
Frequently Asked Questions
➤ Can I use both outputs to control different devices simultaneously?
Yes. Each of the two outputs can be independently configured to function as expression outputs, switch outputs, or control voltage sources, letting you control two different devices at the same time.
➤ How does the pedal detect the correct wiring for my equipment?
Canvas Expression automatically detects the type of expression pedal wiring—TRS, RTS, or TS resistance mode—when connected, removing any guesswork during setup.
➤ Is MIDI control available over both USB and traditional MIDI connections?
Absolutely. The pedal sends MIDI messages over USB-C and ⅛” TRS MIDI outputs simultaneously, supporting up to 16 assignable messages for complex control demands.
➤ Can I adjust the sensitivity and direction of the pedal sweep?
Yes. You can customise sweep direction, taper, and switching thresholds to ensure the pedal responds exactly how you want it across different gear and playing styles.
➤ What devices are best suited for control voltage output?
The CV outputs are ideal for Eurorack modular synthesizers, desktop synths, and any gear that accepts 0–5V or 0–3.3V control voltages. You can select the appropriate voltage range for your setup.
Elevate your rig’s control with the Canvas Expression pedal—where flexibility meets precision for professional performance and studio use.
