Source Audio EQ2 Programmable EQ Effects Pedal

The Source Audio EQ2 Programmable EQ is one of the most powerful and versatile equalizer pedals ever made. Building on the success of the original Programmable EQ (famously used by David Gilmour, Steven Wilson, and John Mayer), the EQ2 combines a 10-band graphic and parametric equalizer, stereo I/O, MIDI control, onboard presets, and a built-in tuner — all in one compact stompbox.

With 10 fully adjustable frequency bands (31 Hz – 16 kHz), ±18 dB of boost or cut, and flexible stereo routing, the EQ2 offers unmatched tone-shaping possibilities for guitar, bass, keys, and any other electrified instrument.

Main Features

• 10-Band Stereo EQ Pedal – Graphic and parametric equalizer in one
• Fully parametric bands (31 Hz – 16 kHz) with ±18 dB boost/cut, frequency shifting, and Q factor adjustments
• 4 onboard presets (expandable to 8) plus 128 MIDI-accessible presets
• +12 dB adjustable clean boost for solos or level-matching
• Onboard Chromatic Tuner – saves pedalboard space
• Stereo Inputs & Outputs – independent EQ curves for each side
• Flexible Routing – run two unique EQ settings simultaneously, each routed to separate stereo outputs
• Simple 1-knob Control Panel with LED matrix display for easy operation
• Deep Editing via Source Audio Neuro Desktop Editor & Mobile App
• Optional Noise Gate & Limiter for added control
• Expression Control & MIDI Integration – CC, PC, and tap tempo support
• Mini USB Port for software connection and preset management
• 3.5 mm Control Port – compatible with Source Audio external controllers
• Selectable True Bypass or Buffered Bypass
• Power: 9V DC PSU (included) – 180 mA current draw (not included)

A New Standard in Equalization

The EQ2 Programmable Equalizer redefines what an EQ pedal can do:
- Adjust any of the 10 bands anywhere across the audible spectrum (20 Hz – 20 kHz)
- Fine-tune your tone with surgical precision using parametric Q adjustments up to 10x more narrow
- Run dual stereo curves for ultimate flexibility in live or studio setups
- Save and recall presets instantly on stage via footswitch or MIDI
- Use the built-in tuner for even more pedalboard efficiency

Deep Software Integration

Connect the EQ2 to the free Source Audio Neuro 3.0 Editor (Desktop or Mobile) for full access to professional-grade controls usually reserved for high-end rack gear:
- Detailed parametric editing for all 10 bands
- Noise gate and limiter adjustments
- Stereo routing options
- Custom shelving & high-pass filter settings
- Assignable expression control over multiple parameters

Why Choose the EQ2?

Whether you need a subtle EQ tweak, a powerful solo boost, or multi-band sculpting across instruments, the EQ2 Programmable EQ is the Swiss army knife of tone shaping. Perfect for guitarists, bassists, keyboardists, and studio musicians, the EQ2 combines pro-level functionality with an intuitive interface, making it equally suited for stage and studio.

Specifications

• Bands: 10 fully parametric (31 Hz – 16 kHz, ±18 dB)
• Presets: 4 onboard / 8 (extended mode) / 128 via MIDI
• Boost: +12 dB clean boost
• Routing: Dual stereo EQ curves, independent output assignment
• Tuner: Onboard chromatic tuner

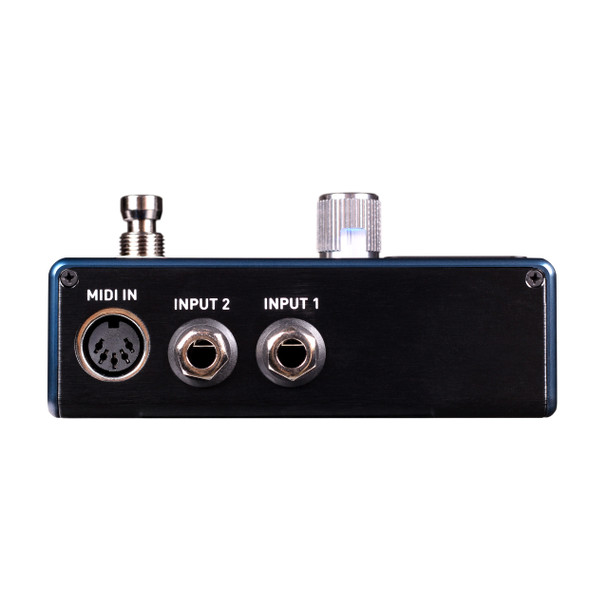

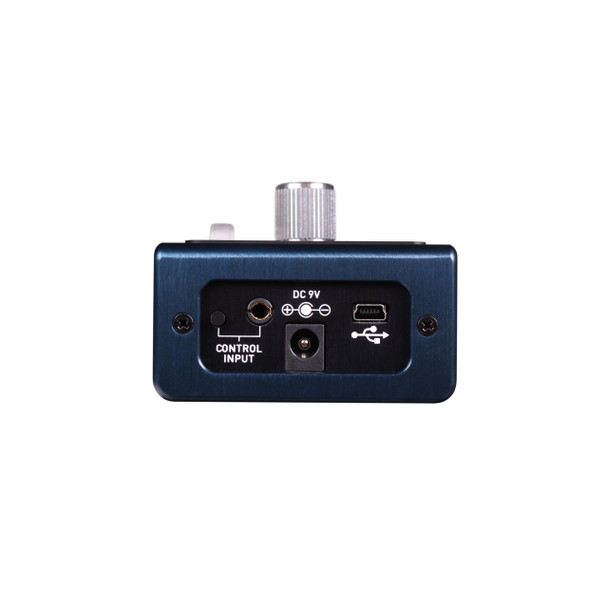

• I/O: Stereo inputs & outputs, MIDI IN/THRU, USB, 3.5 mm control port
• Bypass: Selectable True Bypass or Buffered Bypass
• Power: 9V DC (180 mA, PSU not included)
• Build: Rugged, compact pedalboard-friendly design
