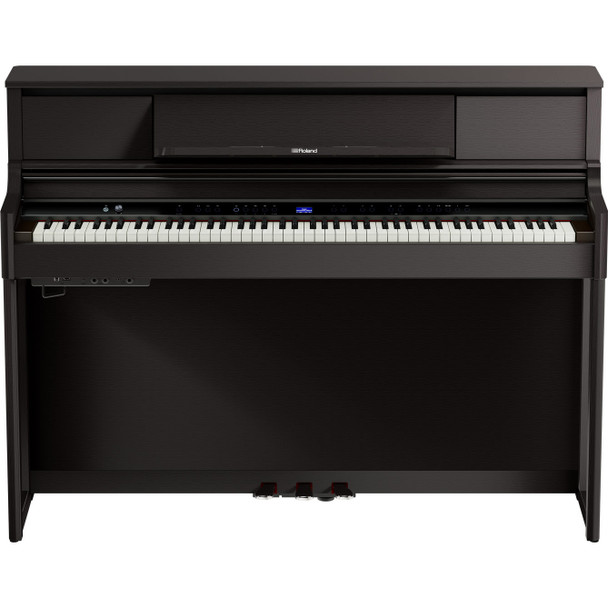

Roland LX-5-DR Upright Digital Piano, Dark Rosewood

The LX-5 is an approachable upright piano that provides a solid foundation for skills to flourish. This entry-level instrument in the LX lineup packs a big sound, backed by advanced sound technology from the flagship LX-9. Feel the smooth hybrid action as your fingers glide over the keys. Tune into convenient digital features to propel performances and support learning. And rest assured that you’ve made a sound investment with a maintenance-free future.

Main Features

• Elegant polished ebony, charcoal black, dark rosewood, and light oak finishes and finely crafted details
• Premium Roland technologies come together to deliver a complete piano experience
• Piano Reality Modeling sound engine for exceptional piano sound and response
• PHA-50 hybrid keyboard with hammer action, escapement, and Ivory Feel materials
• High Precision Sensing key technology for ultra-detailed touch response
• Progressive Damper Action, soft, and sostenuto pedals with continuous detection, damper modelling, and support for traditional techniques
• Piano Reality Projection sound system with custom stereo speakers delivers immersive sound
• Connect a smartphone or tablet via Bluetooth to play along with favourite songs and work with MIDI music apps
• Control LX-5 features, explore lessons, and much more with the companion Roland Piano App
• Metronome, recorder, and dual headphones jacks for daily practice
• USB ports for connecting with computers and flash storage devices

Superior Expression
The LX-5 combines the rich, resonant sound of a premium grand piano with the immediate expression of an upright. In contrast with sampled pianos that just trigger pre-recorded sounds, Roland’s Piano Reality Modeling approach recreates every aspect of an acoustic piano’s voice for a truly immersive musical experience.

Limitless Inspiration
Enjoy endless tonal possibilities and expressive qualities that seamlessly adapt to your playing. Gentle keystrokes produce a dignified, mellow resonance while escalating intensity results in a bright tone that mirrors your dynamic touch. There’s no limit to the performance at your command.

True to Your Touch
To develop proper techniques, there’s no room for compromise regarding the keyboard action. An authentic weighted response allows more nuanced control during your most demanding technical pieces. The innovative PHA-50 hybrid keyboard puts the feel of premium acoustic piano keys under your fingers, combined with durability that will not let you down.

Shape Your Environment
Want to hear your performance from a studio, lounge, concert hall, or cathedral? Instantly transport yourself to four immersive environments with Piano Reality Ambience projected from the Piano Reality Projection four-speaker sound system. Or use headphones to envelop yourself in beautiful music without disturbing others around you.

Specifications

Sound Generator

• Piano Sound: Piano Reality Modeling
• Max. Polyphony: Piano: Limitless (solo playing using ‘Piano’ category tones), Other: 256
• Tone: Total 324 Tones, Grand: 4 Tones, Upright: 5 Tones, Classical: 5 Tones, E.Piano: 12 Tones, Organ: 12 Tones, Other: 286 Tones

Ambience

• Piano Reality Ambience: Type: Studio, Lounge, Concert Hall, Cathedral, Depth: 11 steps

Keyboard

• Keyboard: PHA-50 Hybrid Keyboard (88 keys Hammer Action Keyboard) with Escapement, Ebony/Ivory Feel and High Precision Sensing

Pedal

• Pedal: Damper (Progressive Damper Action Pedal, capable of continuous detection, Damper Modeling), Soft (capable of continuous detection, function assignable), Sostenuto (function assignable, with muffler pedal function)

Sound System

• Sound System: Piano Reality Projection
• Speakers: Cabinet + Spatial Speakers: 12 + 2.5 cm (5 + 1 inches) x 2 (Coaxial Speaker), Near-field Speakers: 8 cm (3-3/16 inches) x 2
• Rated Power Output: 24 W x 2, 21 W x 2

Headphones

• Headphones: Piano Reality Headphones Ambience

Cabinet

• Cabinet: Music rest: with Music holders, Key cover: Slide type, with Keyboard Lid Switch

Tuning, Voicing

• Touch Sensitivity: Key Touch: 100 steps, fixed touch, Hammer Response: Off, 10 steps
• Master Tuning: 415.3–466.2 Hz (adjustable in increments of 0.1 Hz)
• Temperament: 10 types (Equal, Just Major, Just Minor, Pythagorean, Kirnberger I, Kirnberger II, Kirnberger III, Meantone, Werckmeister, Arabic), selectable temperament key
• Effects: Brilliance
• Piano Designer: Lid, Key Off Noise, Hammer Noise, Duplex Scale, Full Scale String Resonance, Damper Resonance, Key Off Resonance, Cabinet Resonance, Soundboard Type, Damper Modeling, Single Note Tuning, Single Note Volume, Single Note Character

Internal Songs

• Internal Songs: Total 394 songs, Listening: 27 songs, Ensemble: 30 songs, Entertainment: 20 songs, Do Re Mi Lesson: 30 songs, Lesson: 287 songs (Scale, Hanon, Beyer, Burgmuller, Czerny 100)

Data Playback

• Playable Software: Standard MIDI Files (Format 0, 1), Audio File (WAV: 44.1 kHz, 16-bit linear format, MP3: 44.1 kHz, 64 kbps–320 kbps, requires USB flash drive)

Bluetooth

• Bluetooth: Bluetooth Ver 5.0, Profile: A2DP (Audio), GATT (MIDI over Bluetooth Low Energy), CODEC: SBC (Supports SCMS-T content protection)

Convenient Functions

• Convenient Functions: Metronome (adjustable Tempo/Beat/Downbeat/Pattern/Volume/Tone, with Rhythm Pattern: 80 patterns), Dual, Split, Twin Piano (with Individual Mode), Transpose (in semitones), Speaker volume and Headphones volume automatically select function, Speaker Auto Mute, Volume limit function, Panel Lock, Panel Off, Auto Off

Other

• Display: Graphic LCD 128 x 64 dots
• Connectors: DC In jack, Input jacks: Stereo miniature phone type, Output (L/Mono, R) jacks: ¼-inch phone type, USB Computer port: USB B (compatible with USB MIDI/Audio), USB Memory port: USB A, Phones jack x 2: Stereo miniature phone type, Stereo ¼-inch phone type
• Power Supply: AC adaptor
• Power Consumption: Power Consumption: 31 W (when using the included AC adaptor), * Approximate power consumption when playing the piano at the center value of the volume: 17 W, * Power consumption when sound has not been played after power-on: 16 W, * Power consumption when in OFF mode (when the power automatically turns off): 0.2 W
• Accessories: Owner’s Manual, “Roland Piano Masterpieces”, Leaflet “USING THE UNIT SAFELY”, AC adaptor, Power cord, Headphone hook

Dimensions

• Width: 1,383 mm / 54-½ inches
• Depth: 468 mm / 18-7/16 inches
• Height: 1,039 mm / 40-15/16 inches
• Weight: 74.0 kg / 164 lbs
