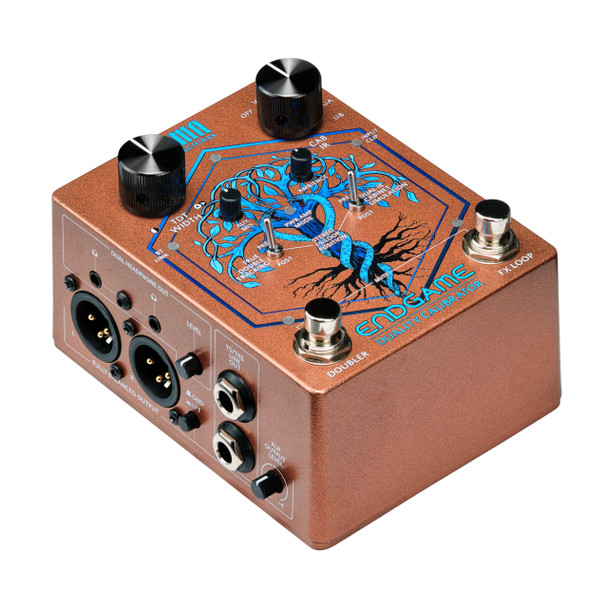

KMA Machines Endgame Multi-Function Amp Sim, ADT Pedal

The KMA Machines ENDGAME is the ultimate end-of-chain solution for guitarists, bassists, and multi-instrumentalists. Designed as both a problem-solver and creative powerhouse, ENDGAME combines stereo effects routing, cabinet and power amp simulation, KMA’s proprietary True Double-Tracker technology, and professional-grade I/O: all in a compact, pedalboard-friendly enclosure.

Whether you’re touring with a fly rig, practicing silently at home, or recording in the studio, ENDGAME provides all the tools you need to bring your stereo pedals to life, add studio-quality double tracking, and sculpt your tone with dual IR cab simulation powered by Celestion®.

Main Features

• Complete Final Stage Pedalboard Solution: distortion, modulation, and stereo effects ready
• Stereo FX Loop: switchable and foot-controllable for pristine stereo sound
• Dual Cabinet Simulation IR Loader: 3 Celestion® presets + 2 user slots for custom IRs
• True Double-Tracker Doubler: proprietary AI-driven algorithm for authentic doubled tone
• Tube Power Amp Simulation: selectable 6L6, EL34, or KT88 character
• Ambience Control: add natural room simulation for lifelike feel
• Flexible Internal Routing: cab sim and doubler pre/post FX loop
• Aux Input: Bluetooth or 3.5mm TRS with blend control for practice/playback
• Dual Headphone Outputs: with independent level control for monitoring or IEM use
• Professional Outputs:
  • Stereo balanced XLR DI with variable level and ground lift
  • Stereo TRS balanced outputs
• Premium Analog Front End: high-headroom, high-impedance input with ±24dB gain trim
• USB-C Connectivity: for loading custom IRs and firmware updates
• Relay-Based Soft Switching: true bypass or buffered bypass options
• Handmade in Berlin, Germany

Specifications

• Cab Simulation: Dual mono IR loader with Celestion® presets (V30, Creamback, Greenback) + 2 user slots
• Power Amp Sim: Switchable EL34 / 6L6 / KT88
• Routing: FX loop assignable pre/post cab sim and doubler
• Inputs: Instrument or line level (+/-24dB gain), Aux input (Bluetooth/3.5mm TRS)
• Outputs: Stereo TRS, stereo XLR (variable mic/line level), dual headphone outs
• Control Features: Width control for double tracker, ambience knob, aux blend, routing toggles
• Bypass: Relay-based silent soft switching
• Power: 9V DC PSU (centre -, 2.1mm, <490mA current draw, not included)

The KMA Machines ENDGAME: a groundbreaking stereo alchemy tool that elevates your entire rig. Add width, clarity, and professional polish to your tone, whether you’re live on stage, recording, or practicing at home.
