Description

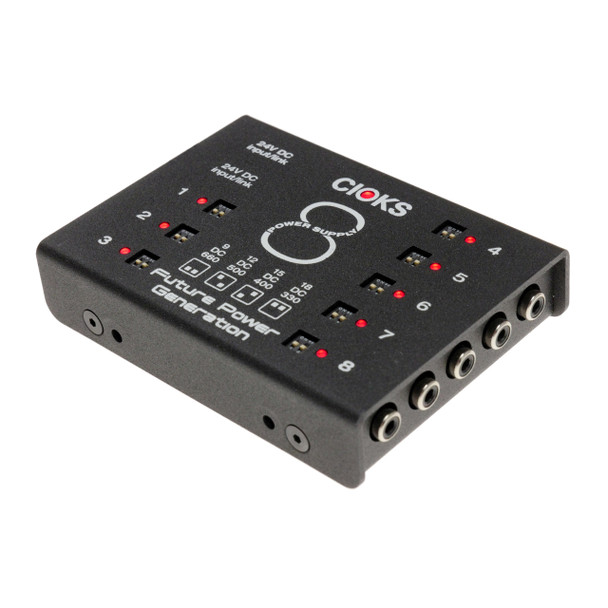

CIOKS 8 Expander Kit: The largest power supply extender in the Future Power Generation series
When the celebrated CIOKS DC7 was released, it definitely caused a stir in the PSU market. With its ground-breaking low profile, low weight and high output connectivity, DC7 has quite rightly found its way onto thousands of pedalboards the world over. Now with the CIOKS 8 Expander, the range has increased to provide pedal devotees even more low noise power options for their sonic treasures.
CIOKS 8 is our largest switch-mode power supply extender. Not only is CIOKS 8 the perfect companion to the CIOKS DC7 (via the DC7’s 24 V outlet), but it can also be used and offer clean power from other PSUs that have a 24 V DC outlet.
Main Features
- Ground-breaking low profile and weight
- 8 isolated DC-outlets, each providing up to 660 mA (at 9 V DC) - total maximum output power 48 W
- Ultra-low noise achieved by multi-stage filtering
- Independently selectable voltage on each outlet (9, 12, 15 or 18 V)
- Global overload status LED
- Mounting hardware for Pedaltrain and Templeaudio boards included
- Compatible with CIOKS GRIP - for drill-free mounting on Pedaltrain boards
- 24 V DC link and 12x Flex cables included:
- (1x 1015 3x 1030 2x 1x 2050 1x 4050 1x 5050 1x 1035 & 1x 1533)
- Designed in Denmark, assembled in Poland
- 5-year worldwide warranty
With its eight additional outlets, individually selectable between 9, 12, 15 and 18V DC, each outlet can deliver up to a staggering 660 mA! To use CIOKS 8 as an extension to DC7, simply use the included DC Link cable to connect the CIOKS 8 to the courtesy 24V outlet on your DC7 and you are good to go. In case you want to use CIOKS 8 as a stand-alone power supply you can power it with any 24V DC adapter with the appropriate DC plug. To get the full 6W output power on all 8 isolated outlets, the adapter used to power CIOKS 8 should have an output power of 60W.
If you are looking for a super powerful power supply setup to power a large pedalboard, the combination of a CIOKS DC7 plus a CIOKS 8 will definitely be a stunning solution, as this combo will give you 15 isolated outlets in total with 4 switchable voltages on each outlet plus a 5V USB outlet to charge your smartphone or tablet (courtesy of DC7).
Specifications
- Input/Through: Dual 24 V DC
- Outlet 1-8: 9 V DC / 660 mA or
- 12 V DC / 500 mA or
- 15 V DC / 400 mA or
- 18 V DC / 330 mA each
- Output power: max. 48 W in total
(Total output power of 48 W can be achieved provided an appropriate and sufficient input power source is applied. For full output power please use a 24 V DC source with min. 60 W of power capability such as CIOKS DC7).
Flex Cables Included
Total of 12 Flex cables, all 2.1mm (BOSS standard), are included. The user is able to power 11 pedals with the included Flex kit.
- 1x 1015 – Type 1 - 5,5/2,1mm DC plug, centre negative, L-shape, 30cm (black)
- 3x 1030 – Type 1 - 5,5/2,1mm DC plug, centre negative, L-shape, 30cm (black)
- 2x 1050 – Type 1 - 5,5/2,1mm DC plug, centre negative, L-shape, 50cm (black)
- 1x 2050 – Type 2 - 5,5/2,1mm DC plug, centre positive, L-shape, 50cm (red)
- 1x 4050 – Type 4 - 5,5/2,5mm DC plug, centre positive, L-shape, 50cm (green)
- 1x 5050 – Type 5 - 3,5mm Jack plug, tip positive, L-shape, 50cm (black)
- 1x 1035 – Split Flex type 1, 30+50cm (black)
- 1x 1533 – 3-way daisy chain Flex type 1, 30-30-50cm (black)
Delivery
This item is normally sent to Mainland UK addresses by DPD who generally provide a one-hour window of delivery on the morning of delivery by email or text message.
Mainland UK: £3.50 within mainland UK ( Orders over £199 are delivered FREE )
UK Non-Mainland: from £12
Rep. of Ireland and Mainland Europe: from £30 (calculated at checkout).
Warranty Information
Standard warranty against manufacturer defects apply. Extended warranty is not available on this item.
