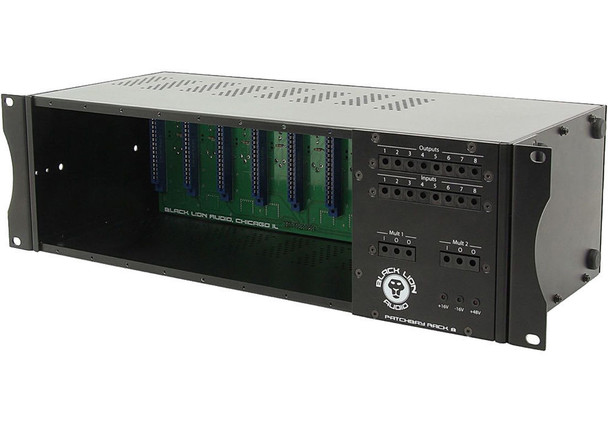

Black Lion PBR8 8 Slot 500 Series Power Rack and Bantam Patch Bay

Black Lion’s PBR8 offers a fresh take on getting the most from the 500-series platform with a unique focus on flexible routing and reliability. Asides from powering up-to 8 studio outboard modules from almost any manufacturer, the PBR8 also features an on-board balanced TT (Bantam) patch-bay enabling a mass of routing and re-routing capabilities.

With on-board patching functionality, the PBR8 allows users to quickly dial-in and audition any preamp, EQ, compressor or other studio signal processing module, regardless of their physical mounting order in the rack.

On-Slot Tech

The PBR8 also features ‘On Slot,’ a technology pioneered by outboard manufacturer Heritage Audio, which isolates and distributes current to each individual model while avoiding interference and under-powering problems across the module array. In the event that any module acts up, On Slot’s protection mode kicks in to ensure the adjacent modules continue to behave normally.

Specifications:

• Slots 8x 500-series
• Inputs 8x XLR, 1x DB-25 (in)
• Outputs 8x XLR (out), 1x DB-25 (out)
• Patchbay TT/Bantam
• Module Power +/-16V DC 400mA per slot (1.6A per rail, 1.8A noncontinuous)
• Phantom +48V DC 140mA
